 AR2™
delivers a better ride, longer life, and lighter
weight for more payload capacity, improved
durability for less downtime, high articulation
capabilities for on/off road applications and
designed and manufactured components that deliver
more comfort and even better system performance.
AR2 suspension has over 5 years of proven
performance in the global vocational markets. |
|
Designed for all highway, server service and
off-road trucks!
|
|

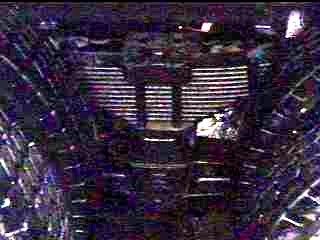

BEFORE
AFTER
(Henrikson Leaf Spring 46K lb
Suspension)
(Henrickson AR2 Air Bag Suspension) |
|
 |
The Hendrickson
AR2 gives you a better ride and improved
suspension performance by converting your RT/RTE
suspension into a walking beam air
suspension. |
|
The air spring
system in AR2 absorbs the load and road
inputs — delivering the preferred combination
of empty-ride and loaded stability for
vocational applications. |
|
Hendrickson-designed air springs constantly
adjust to changing road and load conditions
to deliver superior ride quality. |
|
Improved ride
reduces road shock and vibration to the
vehicle for longer service life and fewer
repairs to the cab, chassis and body
equipment. |
|
Air springs
provide long service life and easy
replacement. |
|
Bar pin rubber
end bushing extends service life and provides
alignment capability. |
|
Hendrickson
parts and service available at thousands of
locations worldwide. |
|
Comprehensive
technical support. |
|
|
|
|
CONVERSION
KIT1 |
COMPLETE
ASSEMBLY |
|
Model
|
AR2 400 |
AR2 460 |
AR2 400 |
AR2 460
|
|
Intalled Weight 2 |
647 LBS. |
652 LBS. |
1,140 LBS. |
1,145 LBS.
|
|
Suspension
Rating |
40,000 LBS.
|
46,000 LBS.
|
40,000 LBS.
|
46,000 LBS.
|
|
GVW Approval 3 |
60,000 LBS.
|
66,000 LBS.
|
60,000 LBS.
|
66,000 LBS.
|
|
|
145,000 LBS. |
160,000 LBS. |
145,000 LBS. |
160,000 LBS. |
|
Site Travel
Rating 4 |
46,000 LBS. |
50,000 LBS. |
46,000 LBS. |
50,000 LBS. |
|
Diagonal
Articulation 5 |
15 inches |
15 inches |
15 inches |
15 inches |
|
Ride Heights |
9.5", 10.5" |
9.5", 10.5" |
9.5", 10.5" |
9.5", 10.5" |
|
Axle Spacing |
52", 54" |
52", 54" |
52", 54" |
52", 54" |
|
Lift Axles |
See Below7 |
See Below8 |
See Below7 |
See Below8 |
AR2
is approved6 for vocational truck
applications such as dump under 18 feet,
crane/boom and platform applications. Contact
Hendrickson for approval of additional
applications.
1. Conversion kit center bushing — if existing
RT/RTE suspension includes bronze center
bushings, they must be replaced with rubber
center bushings. Bronze center bushings are
incompatible with transverse torque rods.
2. Complete kit installed weight includes —
torque rods, axle brackets and frame brackets.
Complete suspension installed weight includes —
equalizing beam assembly, cross tube, torque
rods, axle brackets and frame brackets.
3. Contact Hendrickson for applications that
may exceed GVW approval ratings.
4. Site Travel Rating — Ratings are limited to
no more than 5% of vehicle operation at speed
not to exceed 5 mph. Site travel ratings are
consistent with published axle manufacturer’s
limitations. Axle and suspension site travel
specifications must not be exceeded.
5. Suspension articulation may exceed vehicle’s
capability and may be limited by vehicle
manufacturer; vehicle manufacturer installed
axle stops may restrict suspension’s
articulation.
6. AR2 is approved for vehicles equipped with
aluminum beams up to a 38K maximum capacity.
7. No add-on lift axles
|
| |
|
Use our Contact Form to find out if a Henrickson
AR2 Air
Bag Suspension is available for your truck.
|
|
|
