Road Tamer Air Ride Suspensions

Benefits:

 - Smooth comfortable ride all of the time

 - Automatic electronic leveling

 - Virtually eliminates stress on vehicle, cargo, and occupants

- Replaces rough riding steel springs with comfortable riding air springs

- Headlights stay on the road when loaded

- Tow vehicles rides comfortably loaded or unloaded

- Improved handling and braking

- Absorbs road shock

- Suspension self-adjusts for the load

- Rides level when loaded - no more sag

- Maintains factory weight rating (GVWR)



HOW IT WORKS

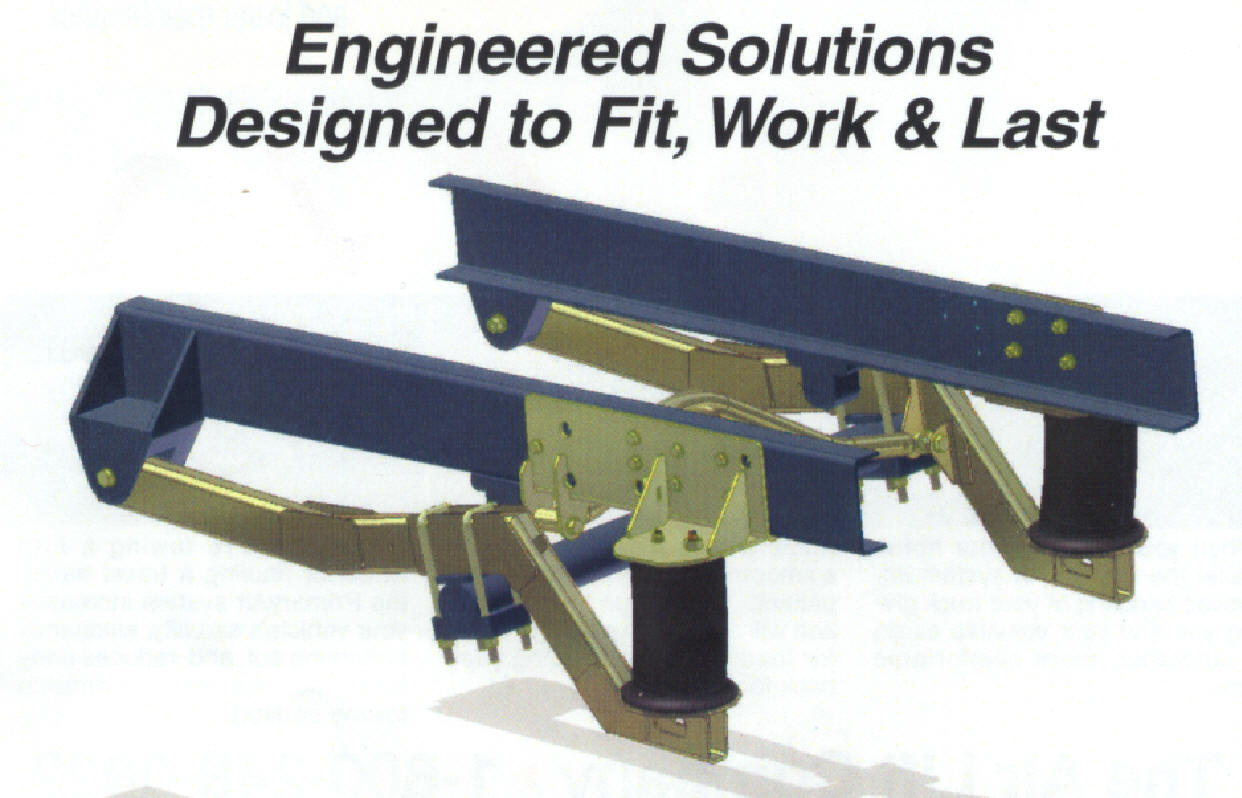

•Road Tamer beams, brackets, and air bags are designed to bolt in place of the factory steel leaf springs on 3/4 and 1-ton pickup trucks to create a superior load-supporting suspension system.

• RoadTamer's electronic leveling system automatically adjusts the pressure in the air bags when the vehicle's load is increased or decreased. This keeps the vehicle level and balanced (front-to-rear) at all times, loaded or unloaded, and creates a smoother ride on rough road surfaces.

• Because air springs are adjustable for load and rate, they achieve the best balance between ride comfort and load strength.
Comes complete with everything for fast and easy installation!
Click part number for your application to find out pricing and to order online!
Part #
Year
Vehicle
2 or 4WD?

Kneeling Included
Instructions
'99-'05
Ford F250/350
2&4WD
 NO F350 2&4WD
'99-'05
Ford F250/350
2&4WD
 YES F350 2&4WD
'01-'05
Chevy 2500HD/3500
2&4WD
 NO Chevy 3500 2&4WD
'01-'05
Chevy 2500HD/3500 with Kneeling
2&4WD
 YES Chevy 3500 2&4WD
'03-'05
Dodge 3500
2WD
 NO 3500 2&4WD
'03-'05
Dodge 3500
2WD
 YES 3500 2&4WD

Primay Air Suspension usually ship one to two days after order is placed.


Optional Kneeling System can be added to any Primary Air Ride Suspension.

Click Picture to order Kneeling Feature  with your Air Ride System!


bullet Installs in 6 to 8 hours (no special tools required).
bulletAll primary air components are powder coated and made of high-grade steel (guaranteed for two years).
bullet Self-monitoring electronic height control drastically reduces manual maintenance.
bulletMain structural components are covered under warranty for two years or 24,000 miles.  All other components are covered for 12 months or 12,000 miles.



Options







Click the above option or options to find out pricing and to order online.



Use our Contact Form to find out if a Primary Air Ride Suspension is available for your truck.  You can also contact us on our toll-free number to place your order.
