Utility Trailer Suspension Parts

Click part number to find out pricing, shipping costs, and to order online.

These utility trailer parts can be shipped anywhere in the United States by UPS

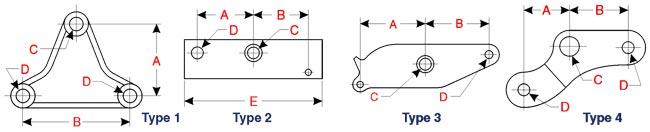

EQUALIZERS

utility trailer suspension parts trailer equalizers
Part N0. Type Width Dim. A Dim. B Dim. C Dim. D Dim. E
E-115  1 1 3/4 2 5 3/4 9/16 9/16 —
E-103  1 1 3/4 4 6 9/16 9/16 —
E-117  2 2 4 3/4 4 5/8 7/8 9/16 12
E-106  2 2 5 1/2 6 7/8 9/16 13 1/8
E-101  3 2 5 4 3/4 7/8 9/16 —
E-102  4 2 2 3/4 3 1/2 7/8 5/8 —


HANGERS - Utility Trailer Suspension Parts

boat trailer parts trailer hangers
Part No. Type / Position Width Dim. A Dim. B
H-117  1-CENT  2 4 7/8
H-105D  1-CENT  3 4 1/4 7/8
H-114  1-FRT  1 3/4 2 5/8 9/16
H-102  1-FRT  1 3/4 3 3/8 9/16
H-107  1-FRT  1 3/4 4 1/2 9/16
H-116  1-FRT  2 4 3/8 9/16
H-101D  1-FRT  2 4 7/8 5/8
H-115  1-RR  1 3/4 2 5/8 3/8
H-103  1-RR  2 6 3/8
H-118  1-RR  2 6  1/16 9/16
H-110  2-EYE  1 3/4 NB-1
H-108  2-EYE  2 NB-7



SIDE BARS -TRAILER SUSPENSION PARTS

trailer suspension parts side bars
Part No. Dim. A Dim. B
S-102  2 9/16
S-106A  2 1/4 9/16
S-106  2 5/8 5/8
S-103  3 9/16
U-BOLT PLATES

U-bolt plates

Part No. Type Dim. A Dim. B Dim. C Dim. D
U-104  1 2 1/2 3 5/8 21/32
U-103  1 2 3/8 2 5/8 17/32  21/32
U-105  1 2 5/8 3  9/16 19/32  19/32


BOLTS - TRAILER PARTS

trailer bolts
Part No. Dim. A Dim. B
B-105   3/8 2 1/2
B-100   3/8 3 1/2
B-101   9/16 3
327-259A    9/16 3 1/4
B-110    9/16 3 1/2
B-102   5/8 3 1/2
B-103   7/8 4 1/2



 PLEASE USE OUR INQUIRY FORM IF YOU HAVE ANY QUESTIONS
