Link Air Ride Suspension
Complete Air Ride systems shipped directly to your door step!  Improve your ride handling and ride comfort!



The Link Air Suspension (true and complete air bag suspension) reduces road shock and vibration normally transmitted into the vehicle by standard steel leaf spring suspensions.  This translates into a more comfortable vehicle environment for the driver and occupants.

The Link air bag suspension system also increases body and component life.  The Link system increases the life of the body and components by putting a cushion of air between them in the road.  This results in less down time and maintenance costs over the life of the vehicle.

For the following applications: (click application for more detail)
Ford F-450, F-550  Super Duty Chassis Cabs (2006 and Newer) GMC C4500/5500 Chassis Cab & Cutaway  (1999-2005)
  GMC C4500/5500 Chassis Cab & Cutaway  (2006 and Newer)
Dodge Ram/Sterling Bullet 4500/5500 (2008 and Newer) GMC C4500/5500 Chassis Cab & Cutaway 4x4  (2006 and Newer)
  GMC C5500 HD (15K Rear Axle)  (2006 and Newer)
  GMC C5500 HD (19K Rear Axle)  (2006 and Newer)
Click picture to view pricing and to order online!

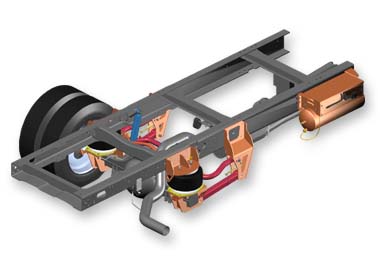

Ford F450/F550 (2005 & Newer)



Base Unit (includes axle kit, sway bar, and shock absorbers) 8M000097























































Features - NEW TECHNOLOGY

•One piece frame mount and air spring bracket

•Uses existing frame holes

•Modular Height Control Mount

•LCR shims and lower control arm shims

•Crossmember for reduced frame stress

•Kneeling ability

Click Picture to order online.  Can be installed by yourself.



Quick Delivery - usually ships within two to three days after order



 OWNER'S MANUAL (PDF)



SPECIFICATIONS SHEET (PDF)



INSTALLATION MANUAL (PDF)



FEATURES

• Ride Height (top of frame to axle center): 17.6”

• Air Spring Design Height: 8.0”

• Axle Travel: 3.10” Jounce (B/C), 3.71” Jounce (M/M),  3.10” Rebound (M/M)

• Style: Parallelogram

• Suspension Weight: 375 lbs.

• Suspension Capacity: 12,000 lbs., 13,600 lbs.





Dodge Ram / Sterling Bullet 4500/5500 (2008 & Newer)

Base Unit (includes shock absorbers, axle kit, & sway bar) 8M000100

























































Click Picture to order online

•One piece frame mount and air spring bracket

•Uses existing frame holes

•Rear outboard mounted shocks

•LCR shims and lower control arm shims

•Crossmember for reduced frame stress

•Kneeling ability



Can be installed by yourself.



Quick Delivery - usually ships within a week after order



OWNER'S MANUAL (PDF)



INSTALLATION MANUAL (PDF)



SPECIFICATIONS SHEET (PDF)



FEATURES

• Ride Height (top of frame to axle center): 17.80”

• Air Spring Design Height: 7.50”

• Axle Travel: 2.9” Jounce (B/C), 4.0” Jounce (M/M), 2.9” Rebound (M/M)

• Style: Parallelogram

• Suspension Weight: 450 lbs.

• Suspension Capacity: 12,000 lbs., 13,500 lbs.





GM C4500 & C5500 CHASSIS CABS & CUTAWAYS

 (1999-2005) 16,000-19,5000 GVW Range

Dana Model 80(11K) & S110 (13.5K) Rear Axle

Click Picture to order online





C







































OWNER AND INSTALLATION MANUAL (PDF)



SPECIFICATIONS SHEET (PDF)





FEATURES

No exhaust modifications

Parallelogram design

Lateral control device

Rate tailored air spring

Dual height control valves

Tuned shock absorbers

Unitized air control system

Kneeling ability





GM C4500 & C5500 CHASSIS CABS & CUTAWAYS

 (2006 and Newer) 16,000-19,5000 GVW Range

Dana Model 80(11K) & S110 (13.5K) Rear Axle

Click Picture to order online



















































OWNER AND INSTALLATION MANUAL (PDF)



SPECIFICATIONS SHEET (PDF)





FEATURES

No exhaust modifications

Parallelogram design

Lateral control device

Rate tailored air spring

Dual height control valves

Tuned shock absorbers

Unitized air control system

Kneeling ability





GM C4500 & C5500 4x4 CHASSIS CABS & CUTAWAYS

17,500-19,500 GVW Range  Dana Model S110 (13.5K) Rear Axle































Click Picture to order online





OWNER AND INSTALLATION MANUAL (PDF)



SPECIFICATIONS SHEET (PDF)













FEATURES

No exhaust modifications

Lateral control device

Rate tailored air spring

Tuned shock absorbers

Unitized air control system

Kneeling ability

OEM supported engineering and design

OEM ship-thru approved





GM C5500 HD (15K Rear Axle)  - 22,000 GVW

Dana S130 & S150 15,000 Lb Rear Axle

Click Picture to order online



Can be installed by yourself.



Quick Delivery - usually ships within a week after order



OWNER AND INSTALLATION MANUAL (PDF)



SPECIFICATIONS SHEET (PDF)



FEATURES

Parallelogram design

Lateral control device

Rate tailored air spring

Dual height control valves

Tuned shock absorbers

Unitized air control system

Kneeling ability

OEM supported engineering and design

OEM ship-thru approved







GM C5500 HD (19K Rear Axle)  4x2 Chassis Cab  26,000LB GVW

Dana/Eaton Model 19060S  19,000 LB Rear Axle

Click Picture to order online



Can be installed by yourself.



Quick Delivery - usually ships within a week after order



OWNER AND INSTALLATION MANUAL (PDF)



SPECIFICATIONS SHEET (PDF)





FEATURES

Parallelogram design

Lateral control device

Rate tailored air spring

Dual height control valves

Tuned shock absorbers

Unitized air control system

Kneeling ability

OEM supported engineering and design

OEM ship-thru approved









Use our Contact Form to find out if a Link Air Ride Suspension (made by Link Chassis Suspensions) is available for your truck.



Stengel Bros. Inc.

WE SHIP UPS ANYWHERE
ACCEPT ALL MAJOR CREDIT CARDS
Copyright (c) 2001 Stengel Brothers Inc.
We also install Link Air Ride suspensions.  Please give us a call to obtain a job estimate and schedule an installation..
