Watson & Chalin Lift Axles




Watson & Chalin Lift Axles

This Wastson & Chalin AL-2200 non-steerable lift-able suspension comes complete with a fully dressed axle and air control kit. It can be used on single axle, tandem axle trucks in the pusher position with drop center axles. It can also comes in a straight axle for tag axles. Give us a call or e-mail us for help on ordering the Watson & Chalin lift axle with the correct specifications for your truck.

Model: AL-2200  25K Lift Axle



  • Capacity – 25,000 lbs.
  • 5 Year Warranty

  •  Hardware – HUCK Fasteners

  •  Compact in Design

  • Axle Type – Straight – Drop Center (6″, 8″, 9″, or 12″) – 1/2″, 5/8″ or 3/4″ Wall

  • Brakes 15″ x 4″ S Cam, 16-1/2 x 7 S Cam, 12-1/4 x 7-1/2 S Cam

  • U-bolts and welding at axle seat to prevent cracking at the axle-to-seat connection

  • Axle Travel – 10″ (7″ Up, 3″ Down)

  • Air Ride – Air Lift

  • Positive Axle Stop

  • Pre-Assembled From Factory

  • Two Pin Axle Connection Rubber Bushings

  • Chambers – Type 16, 20, 24 or 30

  • Wheels – Stud Piloted, Hub Piloted or Spoke Cast or Light Weight

  • Straps to prevent over-extension of the load air springs


Watson & Chalin Trailer Axles and pusher axles

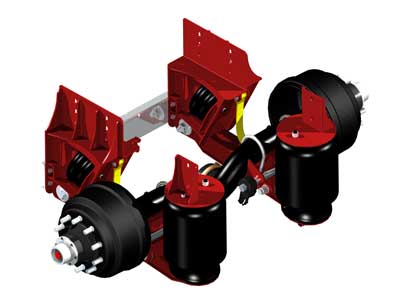

Model: AL-2200
Lift Axle

These axles can be shipped anywhere in North America by common carrier.
